Medium-sized wind power plant with a maximum output of 70 kW and a rated power of 60 kW suitable for both on-grid and off-grid systems.
Wind Power Plant
SWP RE E-60
Energy day and night: with the SWP RE E-60 you won't just depend on the sun.

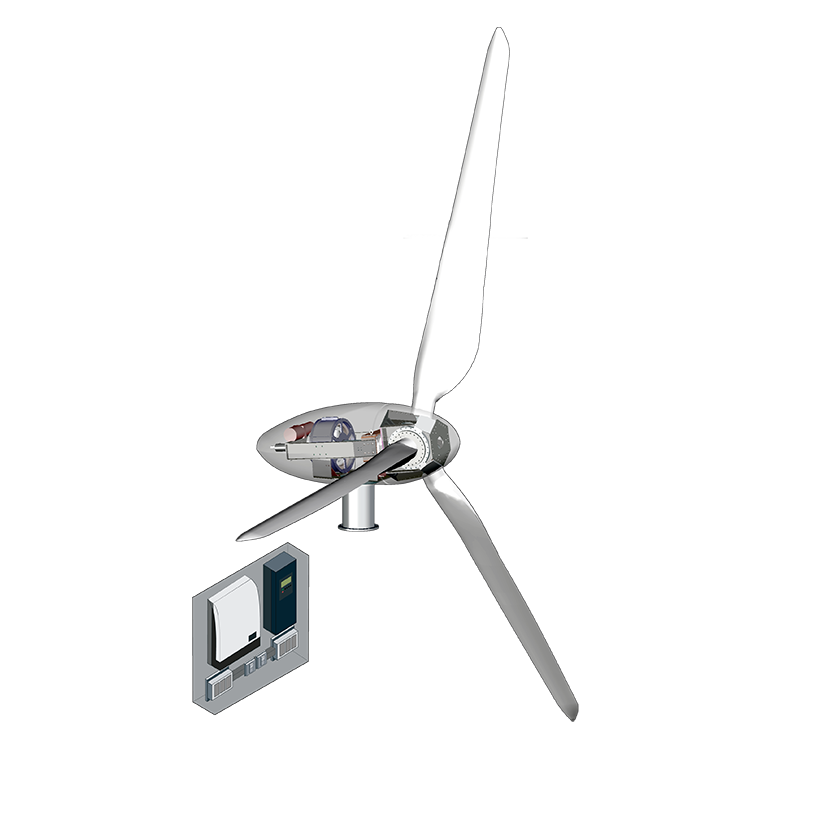

SWP RE E-60 represents an advanced model in the world of wind power plants. With a rated power of 60 kW and a maximum output of up to 70 kW, this power plant is ideal for a wide range of applications, including commercial and industrial. The power plant utilizes a permanent magnet generator, ensuring high efficiency. It is equipped with three 7.4-meter-long blades made of reinforced glass fibers, guaranteeing durability.
A rotor with a diameter of 15.8 meters and a total area of 196 m² optimizes wind energy utilization. Additionally, the power plant is equipped with an active yawing system, which increases its stability while minimizing the need for regular maintenance. It has a wide range of wind operating speeds, starting at a minimum of 2 m/s and reaching up to 59.5 m/s for extreme conditions. The tower is offered in various configurations with a height ranging from 18 to 36 meters.
Modern technology
and safety
First level of safety
Active blade tilt control with 90º movement limits power output and can cause the blades to stall.
Second level of safety
Electronic control system activates a mechanical brake with shaft locking and an electromagnetic induction brake.
Third level of safety
Passive springs deploy, turbine blades go into a braked position, and thus, the rotor stops turning.
Remotely Controllable
Remote adjustment of the wind turbine to provide optimal performance at any location, regardless of where it is installed.
Storm detection
Intelligent storm detection algorithm and automatic safety fuse protect the turbine in case of dangerous gusts/accelerations.
Continuous Online Data
LCD display on the control panel. It can be connected to your computer or monitored remotely via the internet.
Implementation of Wind Power Plants
Every day, we build a new power plant, and here are some of our recent wind power plant projects:
